ASSISI Eco-friendly Flexible HJT Solar Light Pole Supplier

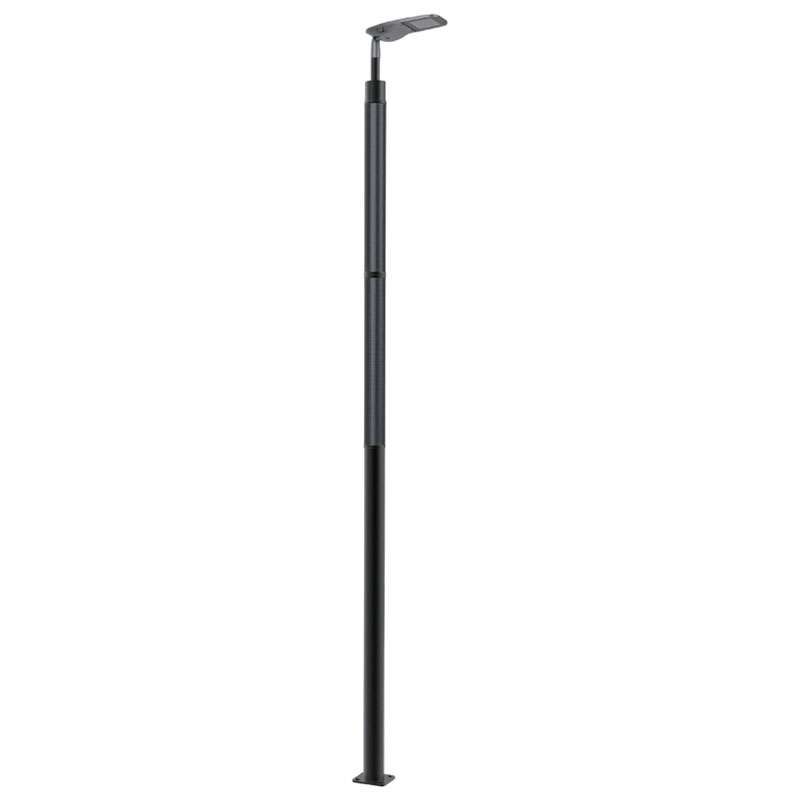

ASSISI Eco-friendly Flexible HJT Solar Light Pole
  • ASSISI Eco-friendly Flexible HJT Solar Light Pole
  • ASSISI Eco-friendly Flexible HJT Solar Light Pole

ASSISI Eco-friendly Flexible HJT Solar Light Pole

Eco-friendly Flexible HJT ASSISI Solar Pole, available in two height options of 5000/6000mm, integrates dual 100W flexible HJT solar panels and a 25.6V/60Ah large-capacity lithium iron phosphate energy storage system, and is equipped with 40W ultra-high brightness LED lighting units.

Core configuration
1. Environmentally friendly light pole system
Material: 100% recyclable 6063-T6 aviation aluminum alloy
Surface treatment: environmentally friendly metal powder spraying
Diameter: φ165mm
Wall thickness: 3.5mm reinforced structure

2. High-efficiency lighting system
Power: 40W (ultra-high efficiency)
Light efficiency: 180 lumens/W
Brightness: 7200 lumens
Chip: Lumileds 3030 environmentally friendly
Color temperature: 3000K/4000K/5000K three-speed adjustable
Protection level: IP65
Lifespan: 50,000 hours
Light distribution: T2-T5 multi-mode environmentally friendly light distribution
Working temperature: -30℃~50℃

3. Green power generation system
Component configuration: dual flexible HJT environmentally friendly components
Total power: 200W (2×100W)
Efficiency: >24%
Size: φ165x2660mm
Daily power generation: ≥1200Wh
Warranty: 10 years

Enquiry
Prev: BOSA Flexible HJT Double lamp head Aluminum Solar Light Pole Next: DAX Aluminum Cost-effective Solar Light Pole
Specifications
Total Height 5000/6000MM
POLE
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ165MM
Wall Thickness 3.5MM
Warranty 10 Years
LED LIGHT
Luminaire Power 40W
Efficacy 180LM/W
Lumen Output 7200LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50,000Hrs
Light Distribution T2, T3,T4, T5
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 2 Modules
Type FlexibleHJT
Power 18V,100Wx2
Efficiency >24%
Dimensions φ165x2660MM
Warranty 10Years
BATTERY
Type LiFePO4
Capacity 12.8V,30Ah*2PCS
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 3 Cloudy Days (Average 12Hrs Per Day)
