ESCH Aluminum Solar Light Pole Supplier

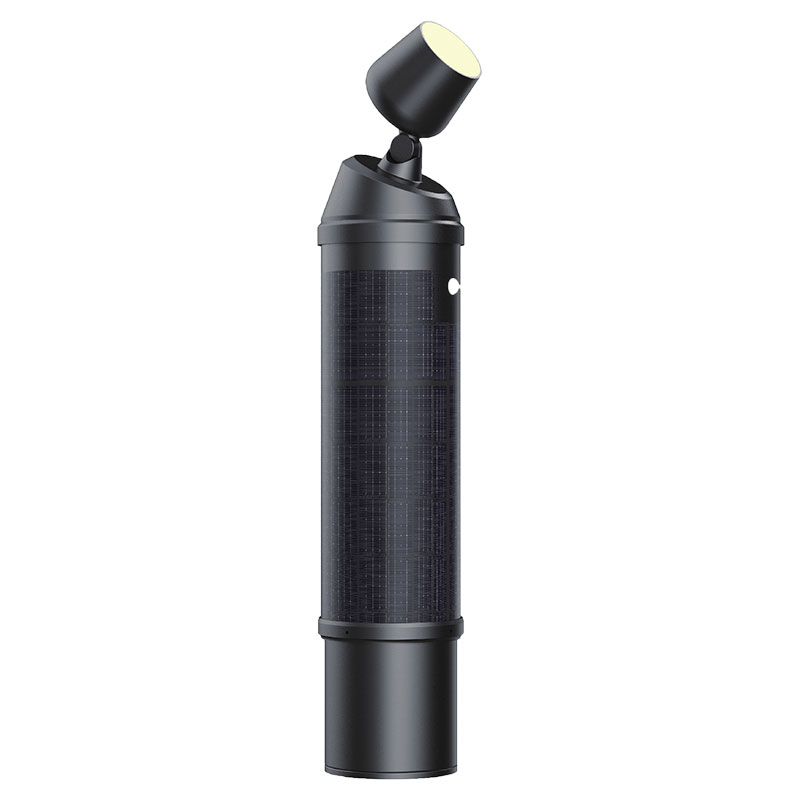

ESCH Aluminum Solar Light Pole

ESCH Aluminum Solar Light Pole

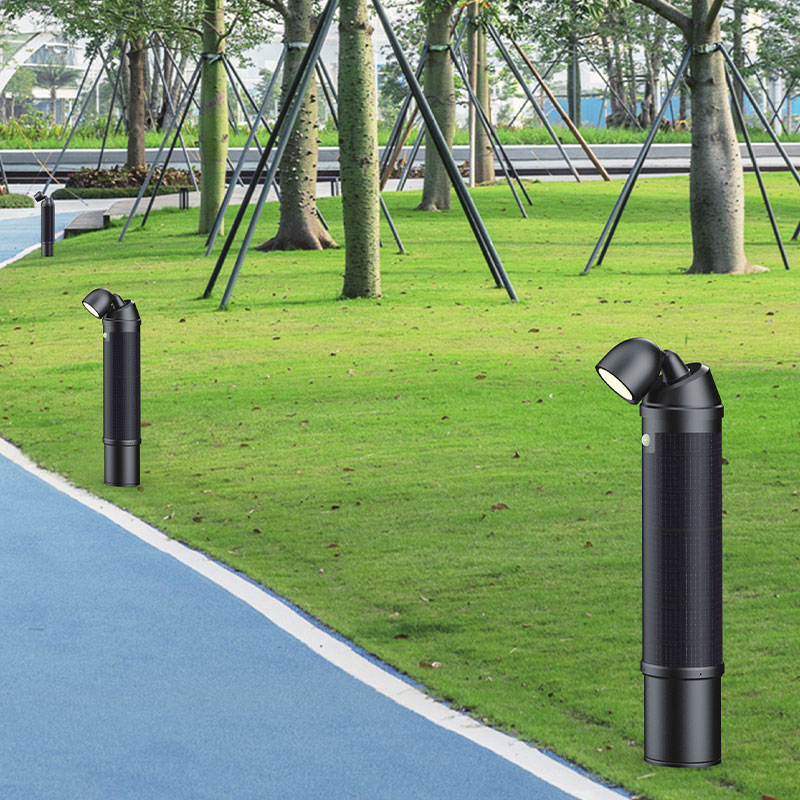

The Aluminum ESCH Solar Pole is a modern outdoor lighting system that integrates efficient photovoltaic power generation, intelligent energy storage, and LED lighting. It adopts a ф203mm large diameter design, equipped with a 6063-T6 aluminum alloy lamp pole with a 4.8mm thickened tube wall, combined with flexible HJT solar technology, to provide stable and environmentally friendly lighting services for urban roads, parks, and squares. The product has passed the 10-year warranty certification and is the preferred solution for smart city construction.

Core configuration and technical parameters
1. Light pole system
Material: military-grade 6063-T6 aluminum alloy (tensile strength ≥ 240MPa)
Process: metal powder spraying (salt spray resistant, UV resistant)
Structure: ф203mm cylindrical pole, 4.8mm thickened wall
Warranty: 10 years
2. LED lighting system
Power: 10W
Light efficiency: 120 lumens/watt
Brightness: 1200 lumens
Warranty: 5 years
3. Solar power supply system
Component type: flexible HJT heterojunction battery (lightweight, bendable)
Power: 5V/58W (daily power generation ≥ 290Wh)
Battery pack: 3.7V/8Ah ternary lithium battery (4 groups in parallel, total capacity 32Ah)

Enquiry
Specifications
Total Height 1000MM
BOLLARD
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ203MM
Wall Thickness 4.8 MM
Warranty 10 Years
LED LIGHT
Luminaire Power 10w
Efficacy 120LM/W
Lumen Output 1200LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50,000Hrs
Light Distribution 120°
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 1 Module
Type Flexible HJT
Power 5V.58W
Efficiency >24%
Dimensions φ203 x650MM
Warranty 10 Years
BATTERY
Type NCM Lithium Battery
Capacity 3.7V.8Ah x4
Cycle Life 500 Times
Charging Time Continuous 2 Sunny Days (Average 5Hrs Per Day)
Discharging Time >3 Days
