SORT Monocrystalline silicon Solar Light Pole Supplier

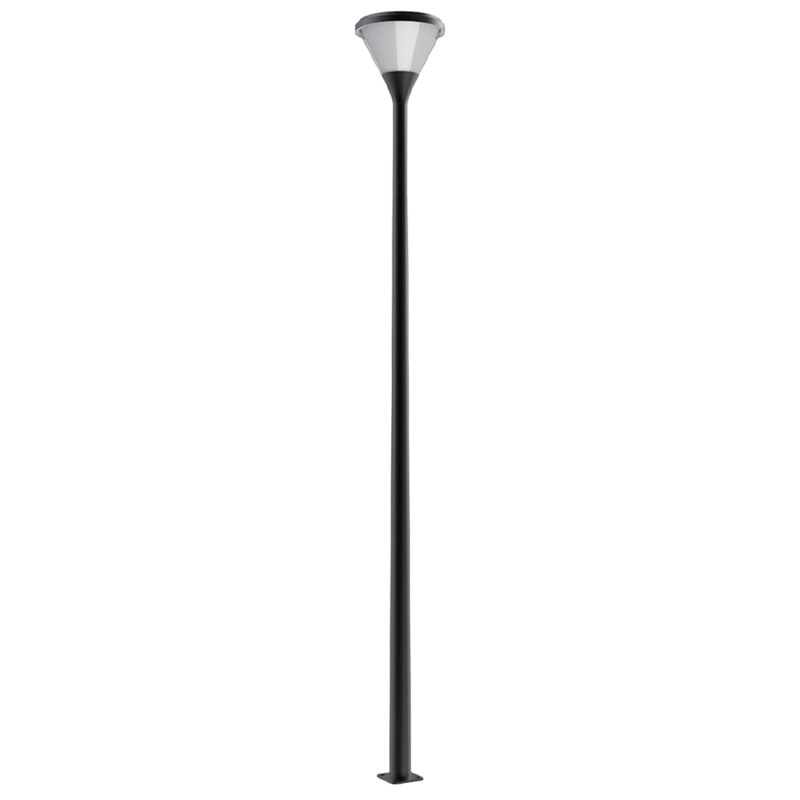

SORT Monocrystalline silicon Solar Light Pole

SORT Monocrystalline silicon Solar Light Pole

The Monocrystalline silicon SORT Solar Pole is made of military-grade 6063-T6 aluminum alloy, with a total height of 3500 mm, equipped with Ф400mm high-efficiency monocrystalline silicon components and 20Ah lithium iron phosphate battery packs, and equipped with a 7W high-brightness LED lighting system to create professional-grade outdoor solar lighting products.

Core configuration parameters
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Surface treatment: military-grade metal powder spraying
Structure: tapered gradient design (φ76-114mm)
Wall thickness: 3mm high-strength tube wall
Warranty: 10-year ultra-long warranty

2. LED lighting system
Power: 7W (high efficiency and energy saving)
Light efficiency: 150 lumens/watt (industry-leading)
Brightness: 1050 lumens (equivalent to 70W traditional lamps)
Chip: Lumileds 3030 chip
Color temperature: three levels optional (3000K/4000K/5000K)
Protection: IP65 all-weather protection
Lifespan: 50,000 hours (about 13.7 years)
Working temperature: -30℃~50℃ extremely wide temperature range
Warranty: 5 years

Enquiry
Specifications
Total Height 3500MM
POLE
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ76-114MM (Top-Bottom)
Wall Thickness 3MM
Warranty 10Years
LED LIGHT
Luminaire Power 7W
Efficacy 150 LM/W
Lumen Output 1050 LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50.000Hrs
Light Distribution 120°
Operating Temperature -30~50C
Warranty 5 Years

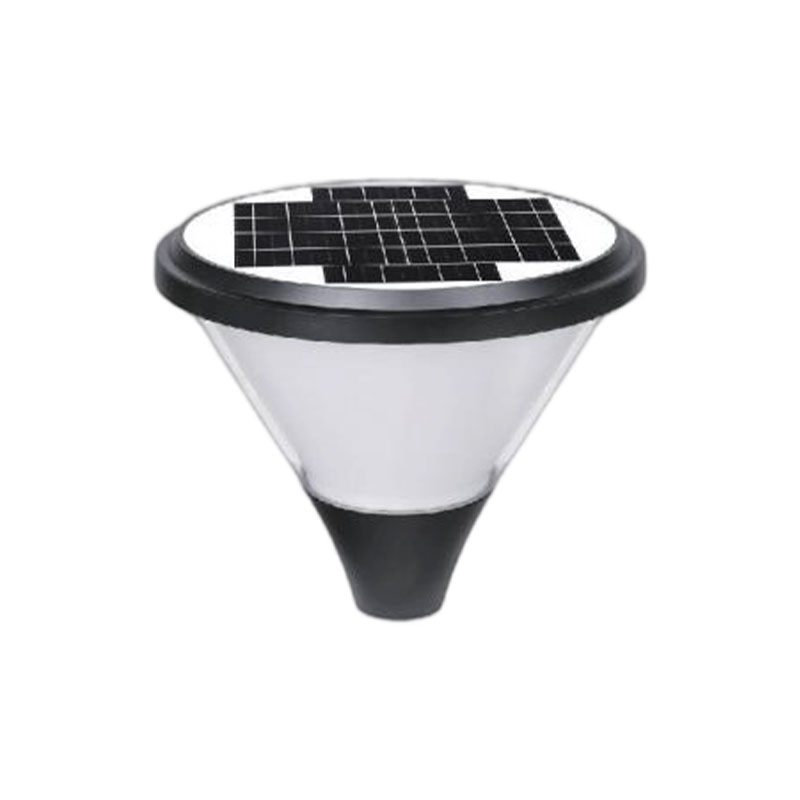

SOLAR MODULE
Module Qty 1 Module
Type Monocrystalline silicon
Power 5V.20 W
Efficiency >22%
Dimensions 400MM
Warranty 10 Years
BATTERY
Type LiFePO4
Capacity 3.2V,20Ah
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 3 Cloudy Days (Average 12Hrs Per Day)
