DAX Aluminum Cost-effective Solar Light Pole Supplier

DAX Aluminum Cost-effective Solar Light Pole

DAX Aluminum Cost-effective Solar Light Pole

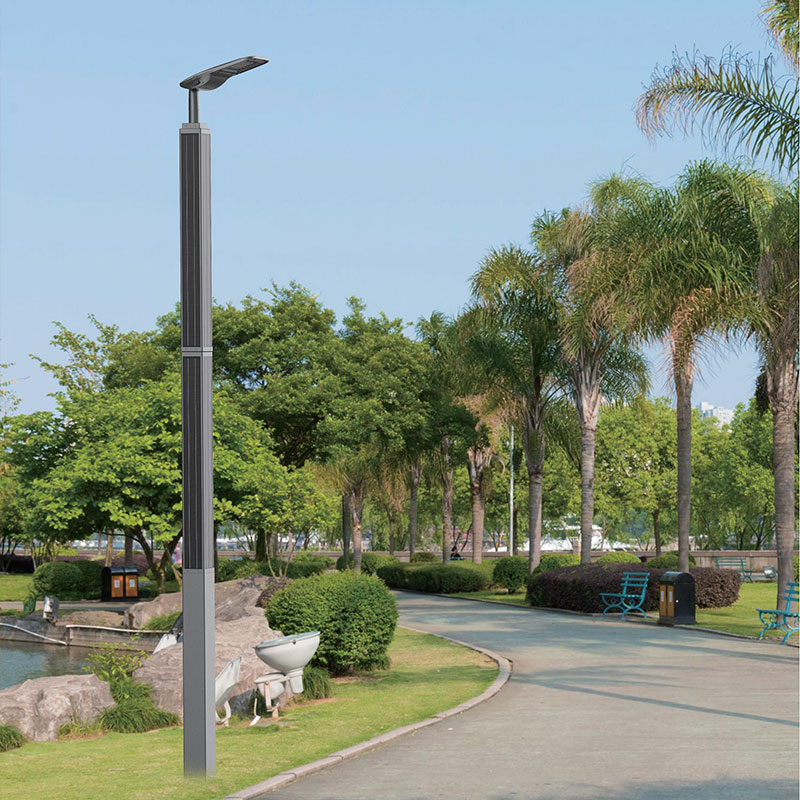

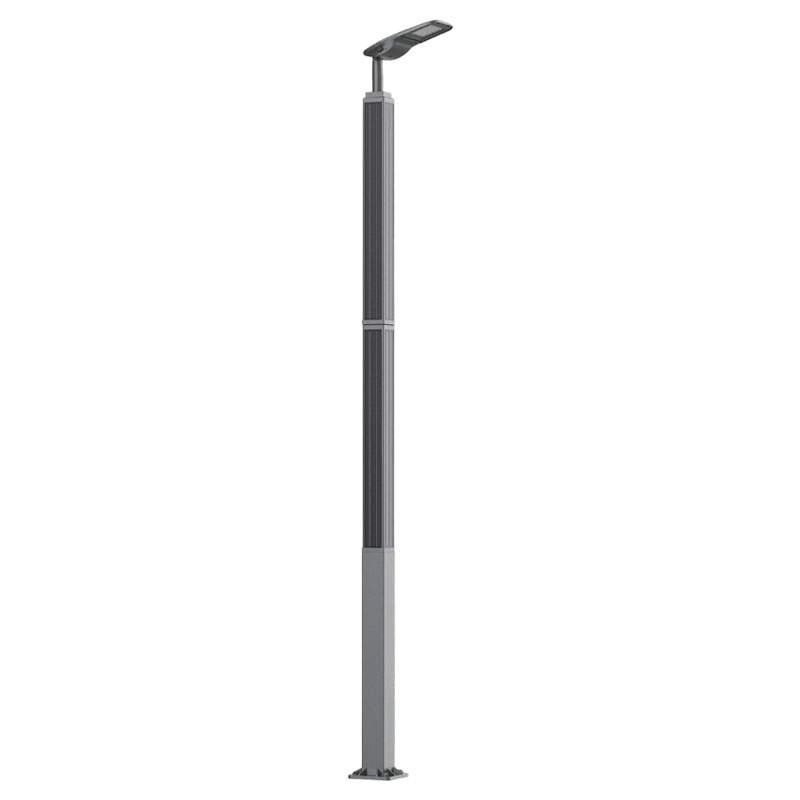

The Aluminum Cost-effective DAX Solar Pole is made of 6063-T6 aluminum alloy and provides two height options of 5000/6000mm. It is equipped with 8 172×172mm high-efficiency monocrystalline silicon modules and a 25.6V/60Ah lithium iron phosphate energy storage system, and is equipped with a 40W ultra-high brightness LED lighting unit, providing an ultra-cost-effective outdoor lighting solution with excellent performance.

Core configuration
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Surface treatment: military-grade metal powder spraying
Size: 172×172mm square design
Wall thickness: 3mm high-strength structure

2. LED lighting system
Power: 40W
Light efficiency: 180 lumens/W
Brightness: 7200 lumens
Chip: Lumileds 3030
Color temperature: 3000K/4000K/5000K three-speed adjustable
Working temperature: -30℃~50℃

3. Power generation system
Number of components: 8 pieces
Type: high-efficiency monocrystalline silicon
Total power: 280W (8×35W)
Efficiency: >22%
Size: 172×172×3060mm
Daily power generation: ≥1680Wh

Enquiry
Specifications
Total Height 5000/6000MM
POLE
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter 172X172MM
Wall Thickness 3MM
Warranty 10Years
LED LIGHT
Luminaire Power 40W
Efficacy 180LM/W
Lumen Output 7200LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50,000Hrs
Light Distribution T2, T3,T4, T5
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 8 Modules
Type Monocrystalline silicon
Power 18V,35Wx8
Efficiency >22%
Dimensions 172 x172x3060MM
Warranty 10 Years
BATTERY
Type LiFePO4
Capacity 12.8V,30Ah*2PCS
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 3 Cloudy Days (Average 12Hrs Per Day)
