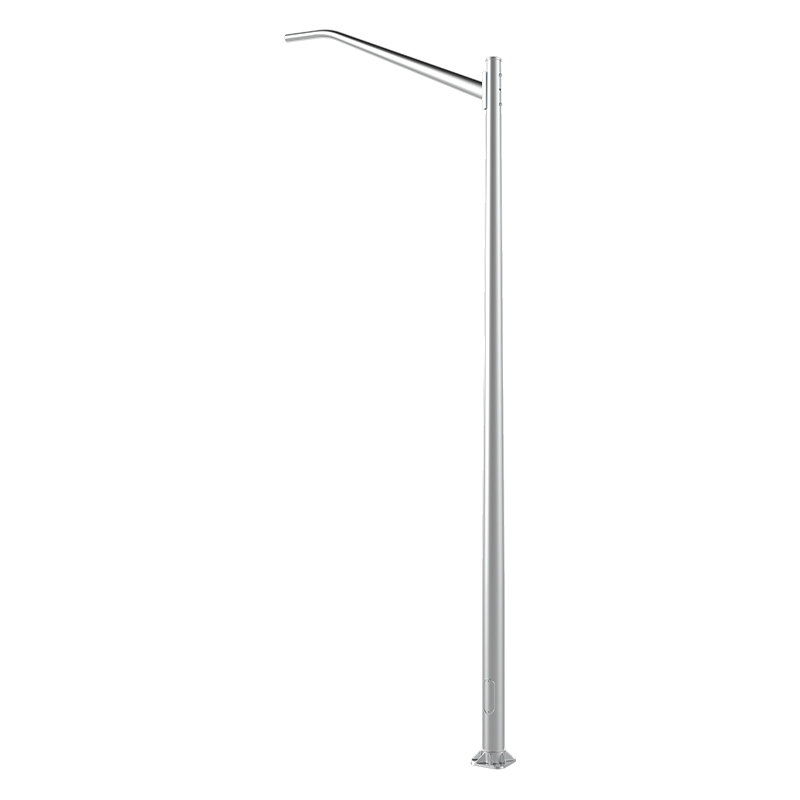

20ft-40ft Aluminum Conical Light Pole, Base Flange Mounting
  • 20ft-40ft Aluminum Conical Light Pole, Base Flange Mounting
  • 20ft-40ft Aluminum Conical Light Pole, Base Flange Mounting

20ft-40ft Aluminum Conical Light Pole, Base Flange Mounting

POLE

Confirming to ASTM B221, the Pole shaft and arm will be made by extrusion
AL6063. The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

BASE PLATE

Cast aluminium base flange, made of A356-T6 Material.

BASE COVER

Round cast aluminium base cover, made of A356 Material.

TOP COVER

Round cast aluminium top cover, made of A356 Material.

Enquiry
Prev: 10ft-40ft Aluminum Conical Light Pole With Top Cover, Planted Mounting Next: 20ft-40ft Aluminum Conical Light Pole, Planted Mounting

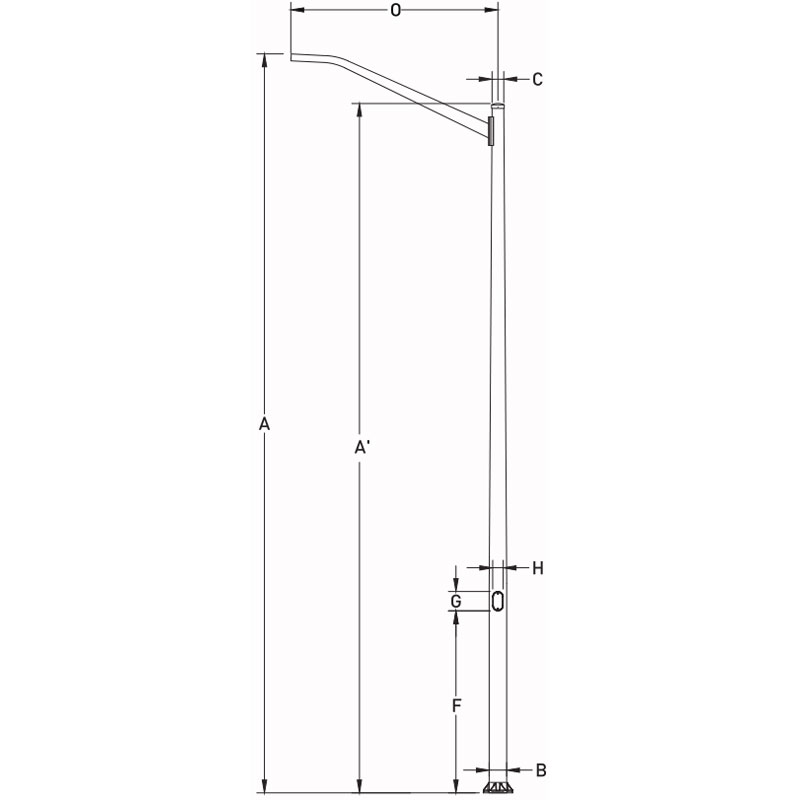

Item Code Mounting Height
"Ft"
A		 Arm
Length
"Ft"
O		 Pole
Height
"Ft"
A'		 Bottom
Dia
"In"
B		 Top
Dia
"In"
C		 Wall
Thickness
"In"		 Door
Heght
"In"
F		 Door
Size
"In"
H*G		 Base
Plate
"In"		 Bolt
Size
"In"		 Bolt
Circle
"In"		 Approx
Weight
"Ibs"
AP-60-45-C-19-X-XX-XX 20 4 19 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 85.7
AP-60-45-C-18-X-XX-XX 20 6 18 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 85.56
AP-60-45-C-17-X-XX-XX 20 8 17 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 87.96
AP-60-45-D-19-X-XX-XX 20 4 19 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 99.36
AP-60-45-D-18-X-XX-XX 20 6 18 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 98.33
AP-60-45-D-17-X-XX-XX 20 8 17 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 101.63
AP-60-45-C-24-X-XX-XX 25 4 24 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 102.78
AP-60-45-C-23-X-XX-XX 25 6 23 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 99.36
AP-60-45-C-22-X-XX-XX 25 8 22 6 4.5 0.156 18 3*5 10*10 1*36*4 9-10 102.78
AP-60-45-D-24-X-XX-XX 25 4 24 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 126.24
AP-60-45-D-23-X-XX-XX 25 6 23 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 117.46
AP-60-45-D-22-X-XX-XX 25 8 22 6 4.5 0.188 18 3*5 10*10 1*36*4 9-10 113.36
AP-70-45-C-24-X-XX-XX 25 4 24 7 4.5 0.156 18 4*6 11*11 1*36*4 10-11 118.08
AP-70-45-C-23-X-XX-XX 25 6 23 7 4.5 0.156 18 4*6 11*11 1*36*4 10-11 118.52
AP-70-45-C-22-X-XX-XX 25 8 22 7 4.5 0.156 18 4*6 11*11 1*36*4 10-11 119.2
AP-70-45-D-24-X-XX-XX 25 4 24 7 4.5 0.188 18 4*6 11*11 1*36*4 10-11 137.5
AP-70-45-D-23-X-XX-XX 25 6 23 7 4.5 0.188 18 4*6 11*11 1*36*4 10-11 137.15
AP-70-45-D-22-X-XX-XX 25 8 22 7 4.5 0.188 18 4*6 11*11 1*36*4 10-11 137.04
AP-80-45-D-29-X-XX-XX 30 4 29 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 176.63
AP-80-45-D-28-X-XX-XX 30 6 28 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 175.6
AP-80-45-D-27-X-XX-XX 30 8 27 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 174.63
AP-80-45-D-34-X-XX-XX 35 4 34 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 201.4
AP-80-45-D-33-X-XX-XX 35 6 33 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 203.3
AP-80-45-D-32-X-XX-XX 35 8 32 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 202.3
AP-80-45-E-34-X-XX-XX 35 4 34 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 260.19
AP-80-45-E-33-X-XX-XX 35 6 33 8 4.5 0.25 35 4*6 12*12 1*36*4 11-12 261.25
AP-80-45-E-32-X-XX-XX 35 8 32 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 258.44
AP-10-60-D-34-X-XX-XX 35 4 34 10 6 0.188 18 4*8 13*13 1*48*4 13-15 260.83
AP-10-60-D-33-X-XX-XX 35 6 33 10 6 0.188 18 4*8 13*13 1*48*4 13-15 257.5
AP-10-60-D-32-X-XX-XX 35 8 32 10 6 0.188 18 4*8 13*13 1*48*4 13-15 255.12
AP-80-45-D-38-X-XX-XX 40 6 38 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 226.86
AP-80-45-D-37-X-XX-XX 40 8 37 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 230.54
AP-80-45-E-38-X-XX-XX 40 6 38 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 291.12
AP-80-45-E-37-X-XX-XX 40 8 37 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 288.59
AP-10-60-D-38-X-XX-XX 40 6 38 10 6 0.188 18 4*8 13*13 1*48*4 13-15 285.76
AP-10-60-D-37-X-XX-XX 40 8 37 10 6 0.188 18 4*8 13*13 1*48*4 13-15 283.6
