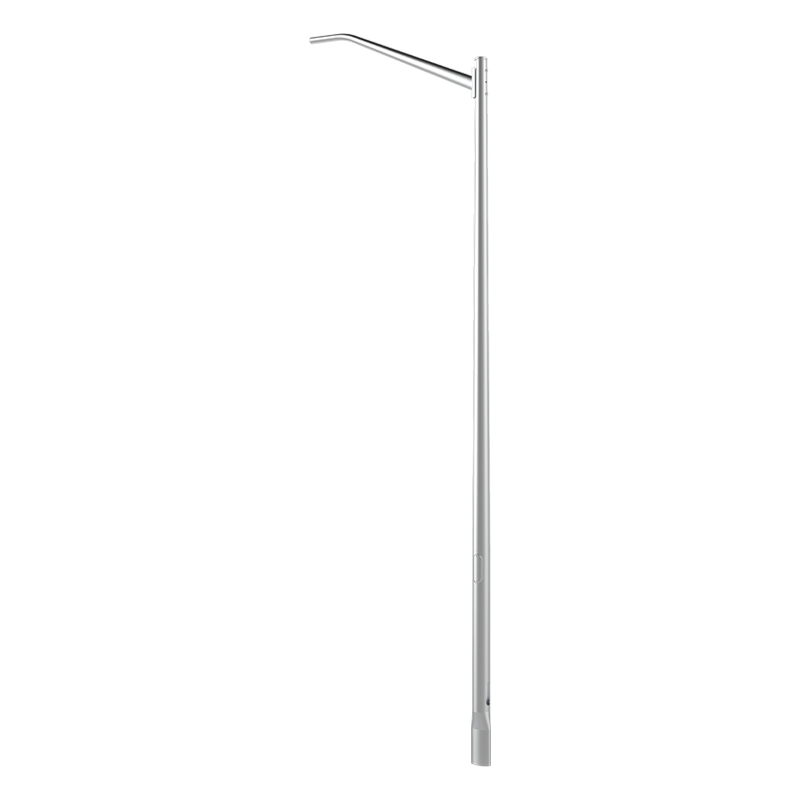

20ft-40ft Aluminum Conical Light Pole, Planted Mounting
  • 20ft-40ft Aluminum Conical Light Pole, Planted Mounting
  • 20ft-40ft Aluminum Conical Light Pole, Planted Mounting

20ft-40ft Aluminum Conical Light Pole, Planted Mounting

POLE

Confirming to ASTM B221, the Pole shaft and arm will be made by extrusion
AL6063. The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

EMBED DETAIL

Wire access will be provided 24'' above the pole bottom, with the Pole bottom flattening to prevent the pole shaft from rotating.

TOP COVER

Round cast aluminium top cover, made of A356 Material.

Enquiry
Prev: 20ft-40ft Aluminum Conical Light Pole, Base Flange Mounting Next: 20ft-40ft Aluminum Conical Light Pole Duo Arms, Base Flange Mounting

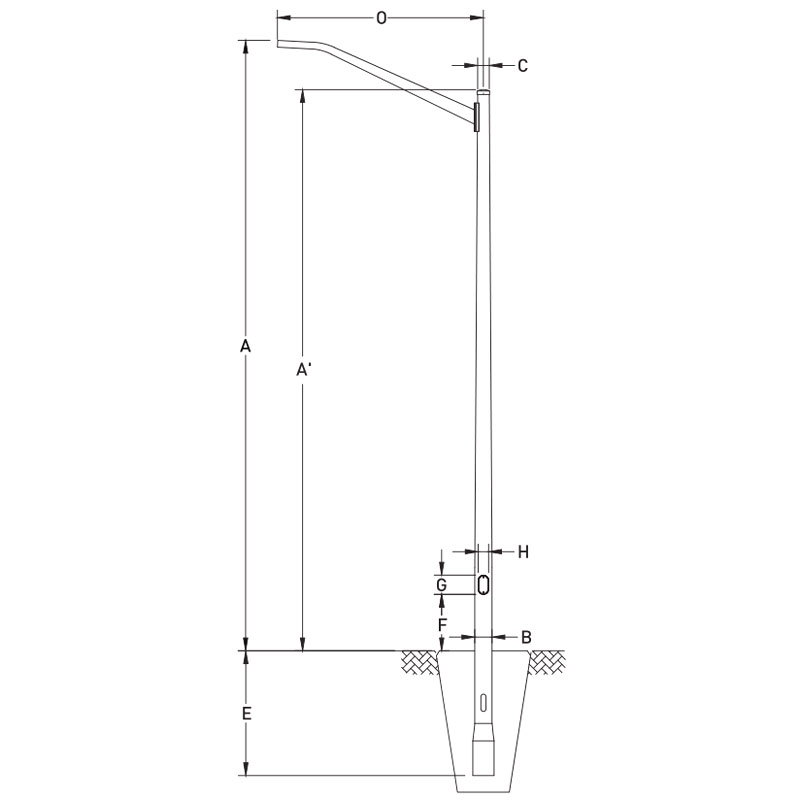

Item Code Mounting Height
"Ft"
A		 Arm
Length
"Ft"
O		 Pole
Height
"Ft"
A'		 Embed
Length
"Ft"
E		 Bottom
Dia
"In"
B		 Top
Dia
"In"
C		 Wall
Thickness
"In"		 Door
Heght
"In"
F		 Door
Size
"In"
H*G		 Approx
Weight
"Ibs"
AP-60-45-C-19-X-XX-XX 20 4 19 4 6 4.5 0.156 18 3*5 92.68
AP-60-45-C-18-X-XX-XX 20 6 18 4 6 4.5 0.156 18 3*5 92.55
AP-60-45-C-17-X-XX-XX 20 8 17 4 6 4.5 0.156 18 3*5 94.78
AP-60-45-D-19-X-XX-XX 20 4 19 4 6 4.5 0.188 18 3*5 100.02
AP-60-45-D-18-X-XX-XX 20 6 18 4 6 4.5 0.188 18 3*5 107.87
AP-60-45-D-17-X-XX-XX 20 8 17 4 6 4.5 0.188 18 3*5 111.17
AP-60-45-C-24-X-XX-XX 25 4 24 4 6 4.5 0.156 18 3*5 109.6
AP-60-45-C-23-X-XX-XX 25 6 23 4 6 4.5 0.156 18 3*5 135.78
AP-60-45-C-22-X-XX-XX 25 8 22 4 6 4.5 0.156 18 3*5 127
AP-60-45-D-24-X-XX-XX 25 4 24 4 6 4.5 0.188 18 3*5 122.9
AP-60-45-D-23-X-XX-XX 25 6 23 4 6 4.5 0.188 18 3*5 131.34
AP-60-45-D-22-X-XX-XX 25 8 22 4 6 4.5 0.188 18 3*5 127.24
AP-70-45-C-24-X-XX-XX 25 4 24 5 7 4.5 0.156 18 4*6 128.34
AP-70-45-C-23-X-XX-XX 25 6 23 5 7 4.5 0.156 18 4*6 132.15
AP-70-45-C-22-X-XX-XX 25 8 22 5 7 4.5 0.156 18 4*6 132.84
AP-70-45-D-24-X-XX-XX 25 4 24 5 7 4.5 0.188 18 4*6 151.14
AP-70-45-D-23-X-XX-XX 25 6 23 5 7 4.5 0.188 18 4*6 154.18
AP-70-45-D-22-X-XX-XX 25 8 22 5 7 4.5 0.188 18 4*6 154.07
AP-80-45-D-29-X-XX-XX 30 4 29 5 8 4.5 0.188 18 4*6 195.3
AP-80-45-D-28-X-XX-XX 30 6 28 5 8 4.5 0.188 18 4*6 194.26
AP-80-45-D-27-X-XX-XX 30 8 27 5 8 4.5 0.188 18 4*6 193.29
AP-80-45-D-34-X-XX-XX 35 4 34 5 8 4.5 0.188 18 4*6 220.05
AP-80-45-D-33-X-XX-XX 35 6 33 5 8 4.5 0.188 18 4*6 193.29
AP-80-45-D-32-X-XX-XX 35 8 32 5 8 4.5 0.188 18 4*6 220.05
AP-80-45-E-34-X-XX-XX 35 4 34 5 8 4.5 0.25 18 4*6 230.83
AP-80-45-E-33-X-XX-XX 35 6 33 5 8 4.5 0.25 35 4*6 229.86
AP-80-45-E-32-X-XX-XX 35 8 32 5 8 4.5 0.25 18 4*6 287.74
AP-10-60-D-34-X-XX-XX 35 4 34 6 10 6 0.188 18 4*8 293.56
AP-10-60-D-33-X-XX-XX 35 6 33 6 10 6 0.188 18 4*8 290.76
AP-10-60-D-32-X-XX-XX 35 8 32 6 10 6 0.188 18 4*8 285.07
AP-80-45-D-38-X-XX-XX 40 6 38 6 8 4.5 0.188 18 4*6 273.47
AP-80-45-D-37-X-XX-XX 40 8 37 6 8 4.5 0.188 18 4*6 271.09
AP-80-45-E-38-X-XX-XX 40 6 38 6 8 4.5 0.25 18 4*6 260.55
AP-80-45-E-37-X-XX-XX 40 8 37 6 8 4.5 0.25 18 4*6 265.23
AP-10-60-D-38-X-XX-XX 40 6 38 6 10 6 0.188 18 4*8 323.43
AP-10-60-D-37-X-XX-XX 40 8 37 6 10 6 0.188 18 4*8 320.9
