10ft-40ft Aluminum Conical Light Pole With Top Cover, Planted Mounting
  • 10ft-40ft Aluminum Conical Light Pole With Top Cover, Planted Mounting
  • 10ft-40ft Aluminum Conical Light Pole With Top Cover, Planted Mounting

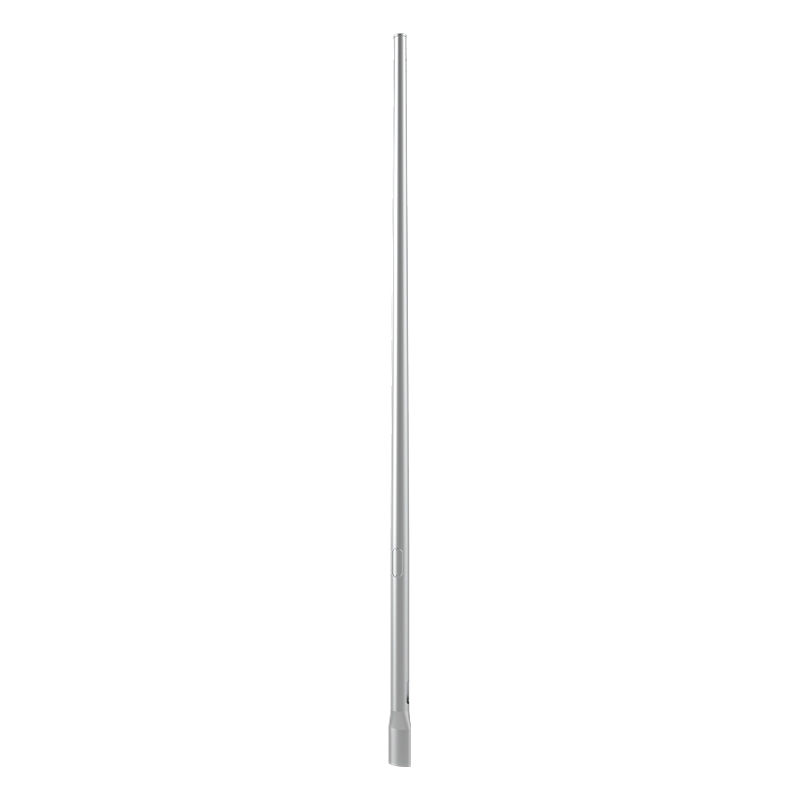

10ft-40ft Aluminum Conical Light Pole With Top Cover, Planted Mounting

POLE

Confirming to ASTM B221, the Pole shaft will be made of extruded AL6063.
The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

EMBED DETAIL

Wire access will be provided 24'' above the pole bottom, with the Pole bottom flattening to prevent the pole shaft from rotating.

TOP COVER

Round cast aluminium top cover, made of A356 Material.

Enquiry
Prev: 10ft-40ft Aluminum Conical Light Pole With Top Cover, Base Flange Mounting Next: 20ft-40ft Aluminum Conical Light Pole, Base Flange Mounting

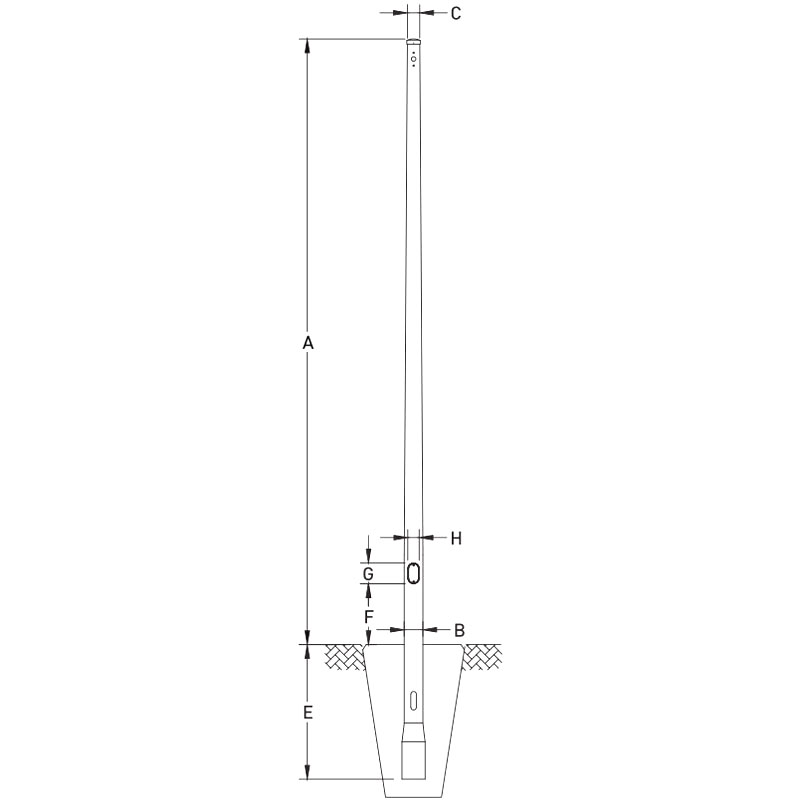

Item Code Mounting Height
"Ft"
A		 Embed Length
"Ft"
E		 Bottom Dia
"In"
B		 Top Dia
"In"
C		 Wall Thickness
"In"		 Door Heght
"In"
F		 Door Size
"In"
H*G		 Approx Weight
"Ibs"
AP-40-30-B-10-X-XX-XXXX 10 3 4 3 0.125 18 2*4 28.85
AP-40-30-B-12-X-XX-XXXX 12 3 4 3 0.125 18 2*4 31.89
AP-40-30-B-14-X-XX-XXXX 14 3 4 3 0.125 18 2*4 35.53
AP-60-40-B-16-X-XX-XXXX 16 4 6 4 0.125 18 3*5 58.03
AP-60-40-C-16-X-XX-XXXX 16 4 6 4 0.156 18 3*5 71.94
AP-60-40-D-16-X-XX-XXXX 16 4 0 4 0.188 18 3*5 85.83
AP-60-40-B-18-X-XX-XXXX 18 4 0 4 0.125 18 3*5 63.5
AP-60-40-C-18-X-XX-XXXX 18 4 6 4 0.156 18 3*5 78.78
AP-60-40-D-18-X-XX-XXXX 18 4 6 4 0.188 18 3*5 94.03
AP-60-40-B-20-X-XX-XXXX 20 4 6 4 0.125 18 3*5 69.01
AP-60-40-C-20-X-XX-XXXX 20 4 6 4 0.156 18 3*5 85.63
AP-60-40-D-20-X-XX-XXXX 20 4 6 4 0.188 18 3*5 102.28
AP-60-40-D-25-X-XX-XXXX 25 4 6 4 0.188 18 3*5 122.74
AP-70-40-C-25-X-XX-XXXX 25 5 7 4 0.156 18 4*6 123.84
AP-70-40-D-25-X-XX-XXXX 25 5 7 4 0.188 18 4*6 148.11
AP-80-45-C-25-X-XX-XXXX 25 5 8 4.5 0.156 18 4*6 140.99
AP-80-45-D-25-X-XX-XXXX 25 5 8 4.5 0.188 18 4*6 168.68
AP-70-40-D-30-X-XX-XXXX 30 5 1 4 0.188 18 4*6 170.47
AP-80-45-D-30-X-XX-XXXX 30 5 8 4.5 0.188 18 4*6 194.18
AP-80-45-E-30-X-XX-XXXX 30 L 8 4.5 0.25 18 4*6 256.02
AP-10-60-D-30-X-XX-XXXX 30 6 10 6 0.188 18 4*8 250.36
AP-10-60-E-30-X-XX-XXXX 30 6 10 6 0.25 18 4*8 330.03
AP-80-45-D-35-X-XX-XXXX 35 5 8 4.5 0.188 18 4*6 216.01
AP-80-45-E-35-X-XX-XXXX 35 6 8 4.5 0.25 18 4*6 284.93
AP-10-60-D-35-X-XX-XXXX 35 6 10 6 0.188 18 4*8 277.69
AP-10-60-E-35-X-XX-XXXX 35 5 10 6 0.25 18 4*8 366.19
AP-80-45-D-40-X-XX-XXXX 40 5 8 4.5 0.188 18 4*6 239.86
AP-80-45-E-40-X-XX-XXXX 40 0 8 4.5 0.25 18 4*6 315.61
AP-10-60-D-40-X-XX-XXXX 40 6 10 6 0.188 18 4*8 307.3
AP-10-60-E-40-X-XX-XXXX 40 6 10 6 0.25 18 4*8 405.36
