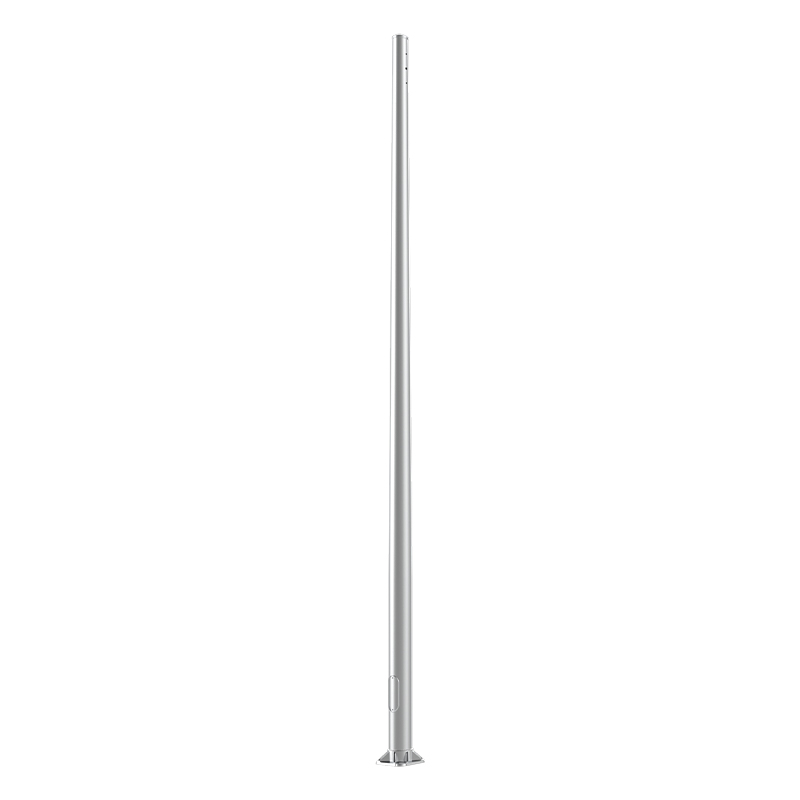

10ft-40ft Aluminum Conical Light Pole With Top Cover, Base Flange Mounting

POLE

Confirming to ASTM B221, the Pole shaft will be made by extruded AL6063； The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

BASE PLATE

Cast Aluminum Base Flange, made by A356-T6 material.

BASE COVER

Round cast aluminium base cover, made of A356 Material.

TOP COVER

Round cast aluminium top cover, made of A356 Material.

Enquiry
Prev: 10ft-40ft Aluminum Conical Light Pole, Planted Mounting Next: 10ft-40ft Aluminum Conical Light Pole With Top Cover, Planted Mounting

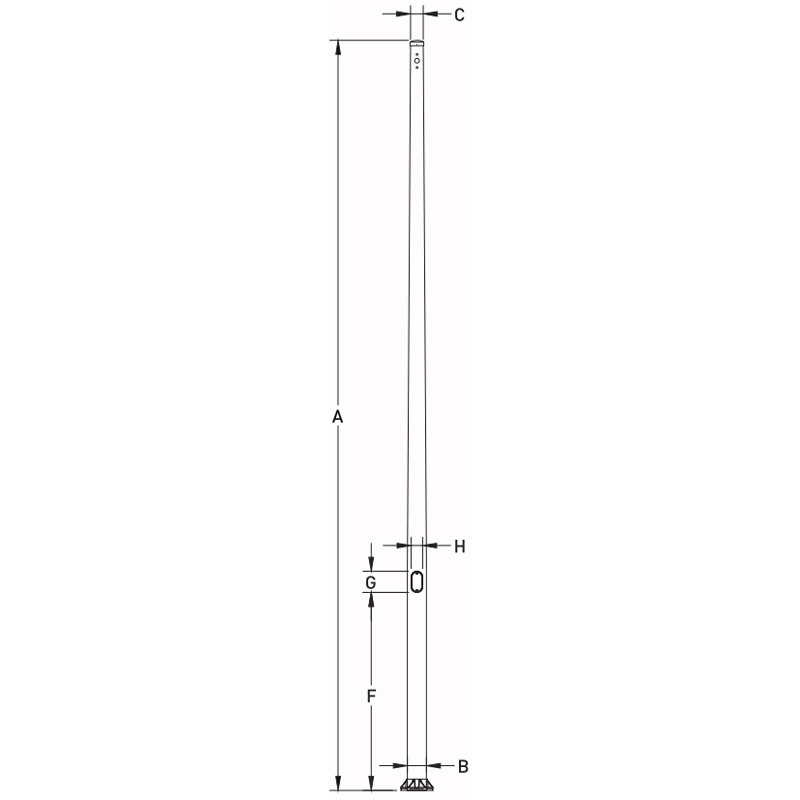

Item Code Mounting Height
"Ft"
A		 Bottom Dia
"In"
B		 Top Dia
"In"
C		 Wall Thickness
"In"		 Door Heght
"In"
F		 Door Size
"In"
H*G		 Base Plate
"In"		 Bolt Size
"In"		 Bolt Circle
"In"		 Approx Weight
"Ibs"
AP-40-30-B-10-X-XX-XXXX 10 4 3 0.125 18 2*4 8.5*8.5 3/4*17*3 7 25.08
AP-40-30-B-12-X-XX-XXXX 12 4 3 0.125 18 2*4 8.5*8.5 3/4*17*3 7 28.74
AP-40-30-B-14-X-XX-XXXX 14 4 3 0.125 18 2*4 8.5*8.5 3/4*17*3 7 32.37
AP-60-40-B-16-X-XX-XXXX 16 6 4 0.125 18 3*5 10*10 1*36*4 9-10 54.77
AP-60-40-C-16-X-XX-XXXX 16 6 4 0.156 18 3*5 10*10 1*36*4 9-10 66.12
AP-60-40-D-16-X-XX-XXXX 16 6 4 0.188 18 3*5 10*10 1*36*4 9-10 77.5
AP-60-40-B-18-X-XX-XXXX 18 6 4 0.125 18 3*5 10*10 1*36*4 9-10 60.24
AP-60-40-C-18-X-XX-XXXX 18 6 4 0.156 18 3*5 10*10 1*36*4 9-10 72.96
AP-60-40-D-18-X-XX-XXXX 18 6 4 0.188 18 3*5 10*10 1*36*4 9-10 85.28
AP-60-40-B-20-X-XX-XXXX 20 6 4 0.125 18 3*5 10*10 1*36*4 9-10 64.78
AP-60-40-C-20-X-XX-XXXX 20 6 4 0.156 18 3*5 10*10 1*36*4 9-10 78.62
AP-60-40-D-20-X-XX-XXXX 20 6 4 0.188 18 3*5 10*10 1*36*4 9-10 92.49
AP-60-40-D-25-X-XX-XXXX 25 6 4 0.188 18 3*5 10*10 1*36*4 9-10 112.95
AP-70-40-C-25-X-XX-XXXX 25 7 4 0.156 18 4*6 11*11 1*36*4 10-11 114.05
AP-70-40-D-25-X-XX-XXXX 25 7 4 0.188 18 4*6 11*11 1*36*4 10-11 134.27
AP-80-45-C-25-X-XX-XXXX 25 8 4.5 0.156 18 4*6 12*12 1*36*4 11-12 126.7
AP-80-45-D-25-X-XX-XXXX 25 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 149.76
AP-70-40-D-30-X-XX-XXXX 30 7 4 0.188 18 4*6 11*11 1*36*4 10-11 156.62
AP-80-45-D-30-X-XX-XXXX 30 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 175.27
AP-80-45-E-30-X-XX-XXXX 30 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 228.18
AP-10-60-D-30-X-XX-XXXX 30 10 6 0.188 18 4*8 13*13 1*48*4 13-15 225.6
AP-10-60-E-30-X-XX-XXXX 30 10 6 0.25 18 4*8 13*13 1*48*4 13-15 291.8
AP-80-45-D-35-X-XX-XXXX 35 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 197.11
AP-80-45-E-35-X-XX-XXXX 35 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 257.08
AP-10-60-D-35-X-XX-XXXX 35 10 6 0.188 18 4*8 13*13 1*48*4 13-15 252.94
AP-10-60-E-35-X-XX-XXXX 35 10 6 0.25 18 4*8 13*13 1*48*4 13-15 327.96
AP-80-45-D-40-X-XX-XXXX 40 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 220.97
AP-80-45-E-40-X-XX-XXXX 40 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 288.65
AP-10-60-D-40-X-XX-XXXX 40 10 6 0.188 18 4*8 13*13 1*48*4 13-15 282.54
AP-10-60-E-40-X-XX-XXXX 40 10 6 0.25 18 4*8 13*13 1*48*4 13-15 367.14
