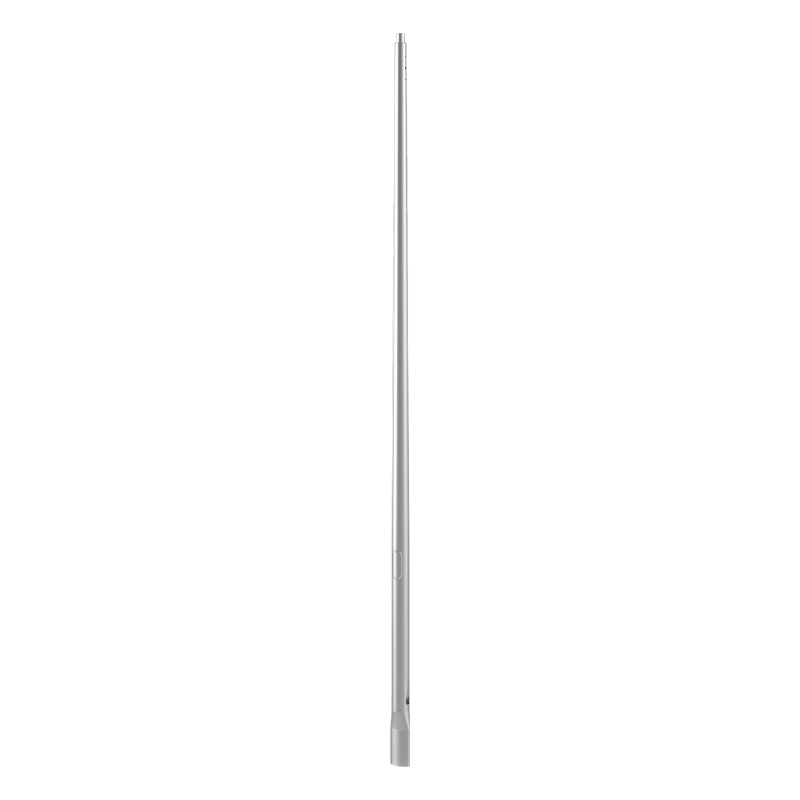

10ft-40ft Aluminum Conical Light Pole, Planted Mounting
  • 10ft-40ft Aluminum Conical Light Pole, Planted Mounting
  • 10ft-40ft Aluminum Conical Light Pole, Planted Mounting

10ft-40ft Aluminum Conical Light Pole, Planted Mounting

POLE

Confirming to ASTM B221, the Pole shaft will be made by extruded AL6063； The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

Cast Aluminum reinforced hand hole with aluminum door cover, and a ground screw provision will be provided opposite the hand hole.

EMBED DETAIL

Wire access will be provided 24'' above the Pole bottom, Pole Bottom flattening to prevent the pole shaft from rotating.

Enquiry
Prev: 10ft-40ft Aluminum Conical Light Pole, Base Flange Mounting Next: 10ft-40ft Aluminum Conical Light Pole With Top Cover, Base Flange Mounting

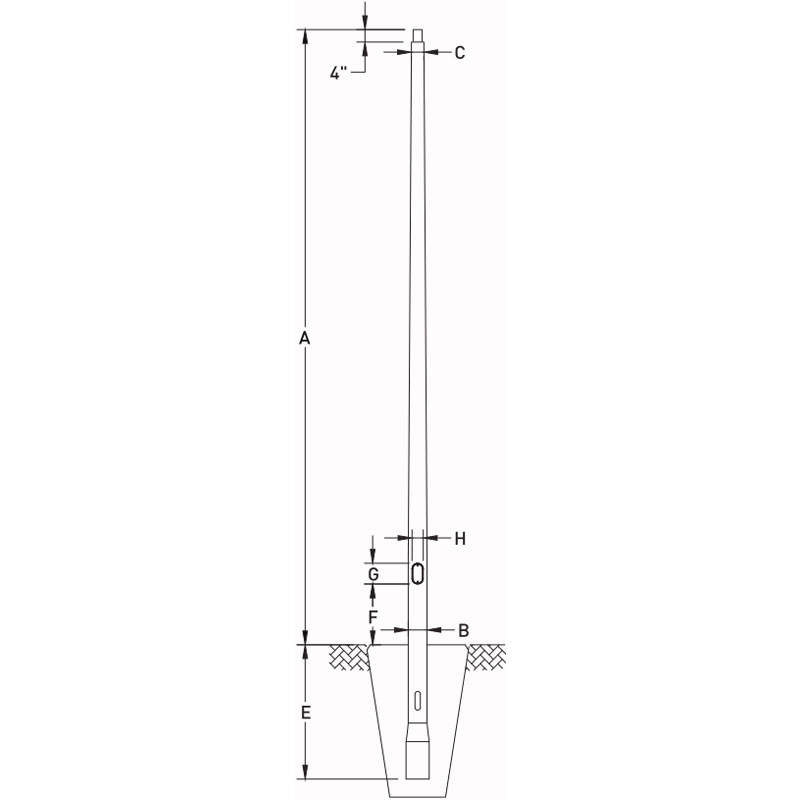

Item Code Mounting Height
"Ft"
A		 Embed Length
"Ft"
E		 Bottom Dia
"In"
B		 Top Dia
"In"
C		 Wall Thickness
"In"		 Door Heght
"In"
F		 Door Size
"In"
H*G		 Approx Weight
"Ibs"
AP-40-30-B-10-X-XX-T 10 3 4 3 0.125 18 2*4 29.17
AP-40-30-B-12-X-XX-T 12 3 4 3 0.125 18 2*4 32.21
AP-40-30-B-14-X-XX-T 14 3 4 3 0.125 18 2*4 35.85
AP-60-40-B-16-X-XX-T 16 4 6 4 0.125 18 3*5 58.36
AP-60-40-C-16-X-XX-T 16 4 6 4 0.156 18 3*5 72.27
AP-60-40-D-16-X-XX-T 16 4 6 4 0.188 18 3*5 83.16
AP-60-40-B-18-X-XX-T 18 4 6 4 0.125 18 3*5 63.82
AP-60-40-C-18-X-XX-T 18 4 6 4 0.156 18 3*5 79.1
AP-60-40-D-18-X-XX-T 18 4 6 4 0.188 18 3*5 94.36
AP-60-40-B-20-X-XX-T 20 4 6 4 0.125 18 3*5 69.34
AP-60-40-C-20-X-XX-T 20 4 6 4 0.156 18 3*5 85.96
AP-60-40-D-20-X-XX-T 20 4 6 4 0.188 18 3*5 102.6
AP-60-40-D-25-X-XX-T 25 4 6 4 0.188 18 3*5 123.06
AP-70-40-C-25-X-XX-T 25 5 7 4 0.156 18 4*6 124.16
AP-70-40-D-25-X-XX-T 25 5 7 4 0.188 18 4*6 148.4
AP-80-45-C-25-X-XX-T 25 5 8 4.5 0.156 18 4*6 141.3
AP-80-45-D-25-X-XX-T 25 5 8 4.5 0.188 18 4*6 168.98
AP-70-40-D-30-X-XX-T 30 5 7 4 0.188 18 4*6 170.8
AP-80-45-D-30-X-XX-T 30 5 8 4.5 0.188 18 4*6 194.5
AP-80-45-E-30-X-XX-T 30 5 8 4.5 0.25 18 4*6 256.33
AP-10-60-D-30-X-XX-T 30 6 10 6 0.188 18 4*8 250.67
AP-10-60-E-30-X-XX-T 30 6 10 6 0.25 18 4*8 330.34
AP-80-45-D-35-X-XX-T 35 5 8 4.5 0.188 18 4*6 216.32
AP-80-45-E-35-X-XX-T 35 5 8 4.5 0.25 18 4*6 285.23
AP-10-60-D-35-X-XX-T 35 6 10 6 0.188 18 4*8 278
AP-10-60-E-35-X-XX-T 35 6 10 6 0.25 18 4*8 366.5
AP-80-45-D-40-X-XX-T 40 5 8 4.5 0.188 18 4*6 240.17
AP-80-45-E-40-X-XX-T 40 5 8 4.5 0.25 18 4*6 315.92
AP-10-60-D-40-X-XX-T 40 0 10 6 0.188 18 4*8 307.61
AP-10-60-E-40-X-XX-T 40 6 10 6 0.25 18 4*8 405.67
