10ft-40ft Aluminum Conical Light Pole, Base Flange Mounting Supplier

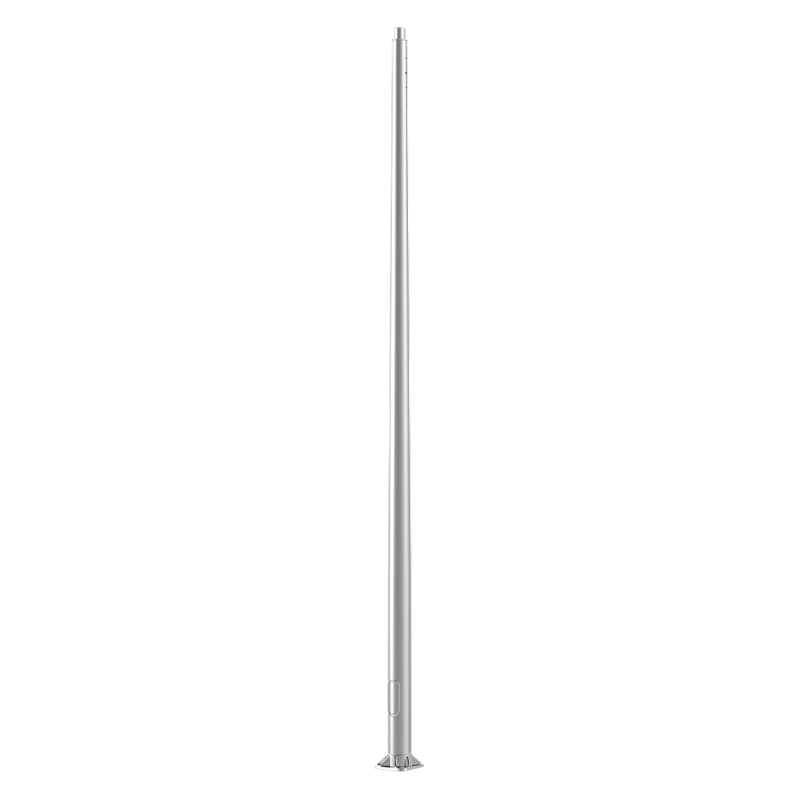

10ft-40ft Aluminum Conical Light Pole, Base Flange Mounting
  • 10ft-40ft Aluminum Conical Light Pole, Base Flange Mounting
  • 10ft-40ft Aluminum Conical Light Pole, Base Flange Mounting

10ft-40ft Aluminum Conical Light Pole, Base Flange Mounting

POLE

Confirming to ASTM B221, the Pole shaft will be made of extruded AL6063.
The whole shaft will be full-length T6 heat-treated after the base flange is welded.

HAND HOLE

A cast aluminium reinforced hand hole with an aluminium door cover, and a ground screw provision will be provided opposite the hand hole.

BASE PLATE

Cast aluminium base flange, made of A356-T6 material.

BASE COVER

Round cast aluminium base cover, made of A356 Material.

Enquiry
Prev: No previous article Next: 10ft-40ft Aluminum Conical Light Pole, Planted Mounting

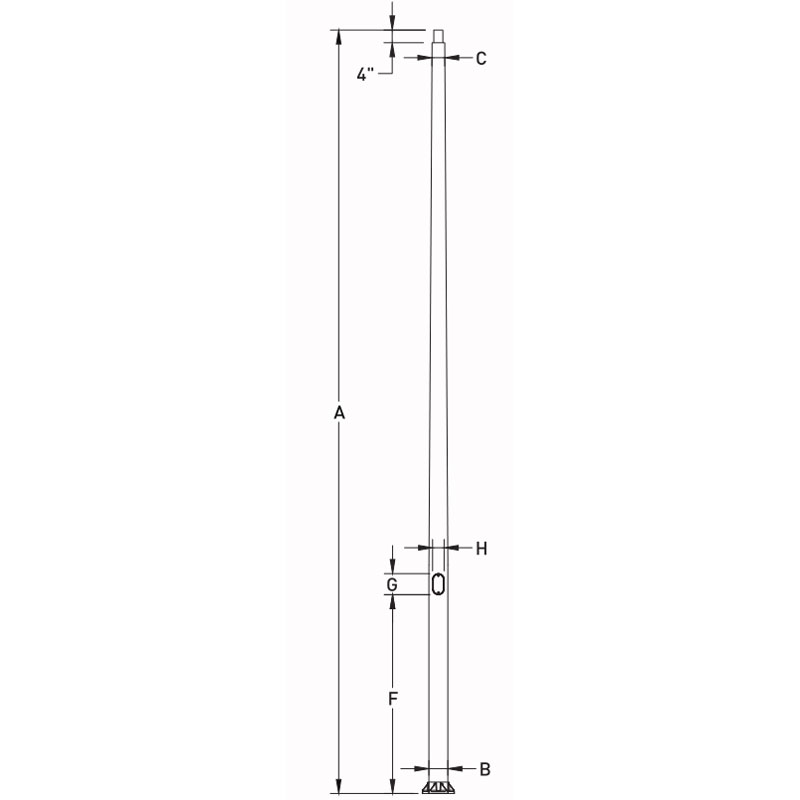

Item Code Mounting Height
"Ft"
A		 Bottom Dia
"In"
B		 Top Dia
"In"
C		 Wall Thickness
"In"		 Door Heght
"In"
F		 Door Size
"In"
H*G		 Base Plate
"In"		 Bolt Size
"In"		 Bolt Circle
"In"		 Approx Weight
"Ibs"
AP-40-30-B-10-X-XX-T 10 4 3 0.125 18 2*4 8.5*8.5 3/4*17*3 7 25.4
AP-40-30-B-12-X-XX-T 12 4 3 0.125 18 2*4 8.5*8.5 3/4*17*3 7 29.06
AP-40-30-B-H-X-XX-T U 4 3 0.125 18 2*4 8.5*8.5 3/4*17*3 7 32.7
AP-60-40-B-16-X-XX-T 16 6 4 0.125 18 3*5 10*10 1*36*4 9-10 55.09
AP-60-40-C-16-X-XX-T 16 6 4 0.156 18 3*5 10*10 1*36*4 9-10 66.45
AP-60-40-D-16-X-XX-T 16 6 4 0.188 18 3*5 10*10 1*36*4 9-10 77.82
AP-60-40-B-18-X-XX-T 18 6 4 0.125 18 3*5 10*10 1*36*4 9-10 60.56
AP-60-40-C-18-X-XX-T 18 6 4 0.156 18 3*5 10*10 1*36*4 9-10 73.28
AP-60-40-D-18-X-XX-T 18 6 4 0.188 18 3*5 10*10 1*36*4 9-10 86
AP-60-40-B-20-X-XX-T 20 6 4 0.125 18 3*5 10*10 1*36*4 9-10 65.1
AP-60-40-C-20-X-XX-T 20 6 4 0.156 18 3*5 10*10 1*36*4 9-10 78.95
AP-60-40-D-20-X-XX-T 20 6 4 0.188 18 3*5 10*10 1*36*4 9-10 92.81
AP-60-40-D-25-X-XX-T 25 6 4 0.188 18 3*5 10*10 1*36*4 9-10 113.27
AP-70-40-C-25-X-XX-T 25 7 4 0.156 18 4*6 11*11 1*36*4 10-11 114.38
AP-70-40-D-25-X-XX-T 25 7 4 0.188 18 4*6 11*11 1*36*4 10-11 134.6
AP-80-45-C-25-X-XX-T 25 8 4.5 0.156 18 4*6 12*12 1*36*4 11-12 127.01
AP-80-45-D-25-X-XX-T 25 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 150.07
AP-70-40-D-30-X-XX-T 30 7 4 0.188 18 4*6 11*11 1*36*4 10-11 156.95
AP-80-45-D-30-X-XX-T 30 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 175.58
AP-80-45-E-30-X-XX-T 30 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 228.49
AP-10-60-D-30-X-XX-T 30 10 6 0.188 18 4*8 13*13 1*48*4 13-15 225.91
AP-10-60-E-30-X-XX-T 30 10 6 0.25 18 4*8 13*13 1*48*4 13-15 292.11
AP-80-45-D-35-X-XX-T 35 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 197.42
AP-80-45-E-35-X-XX-T 35 8 4.5 0.25 18 4*6 12*12 1*36*4 11-12 257.4
AP-10-60-D-35-X-XX-T 35 10 6 0.188 18 4*8 13*13 1*48*4 13-15 253.25
AP-10-60-E-35-X-XX-T 35 10 6 0.25 18 4*8 13*13 1*48*4 13-15 328.27
AP-80-45-D-40-X-XX-T 40 8 4.5 0.188 18 4*6 12*12 1*36*4 11-12 221.28
AP-80-45-E-A0-X-XX-T 40 8 4.5 0.25 18 4*6 12*12 1*36*4

11-12

 288.96
AP-10-60-D-40-X-XX-T 40 10 6 0.188 18 4*8 13*13 1*48*4 13-15 282.85
AP-10-60-E-A0-X-XX-T 40 10 6 0.25 18 4*8 13*13 1*48*4 13-15 367.44
