UDINE Aluminum Corrosion resistance Solar Light Pole Supplier

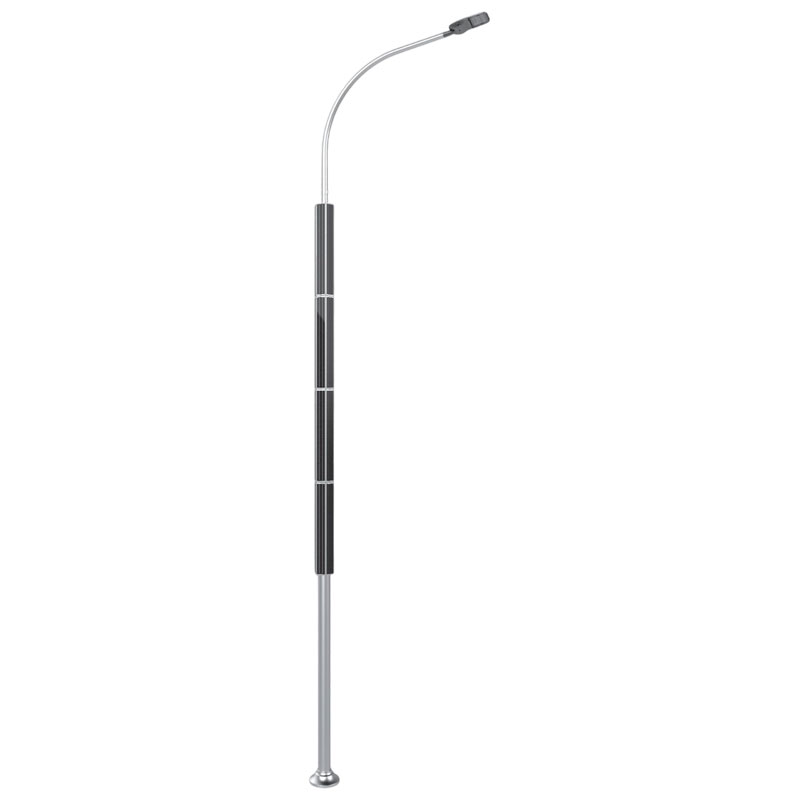

UDINE Aluminum Corrosion resistance Solar Light Pole

UDINE Aluminum Corrosion resistance Solar Light Pole

This Aluminum corrosion-resistant UDINE Solar Pole is designed with military-grade protection standards and is specially designed for high-corrosion environments such as coastal areas and industrial areas. Equipped with an 840W high-power photovoltaic system and 21,600 lumens of high-brightness lighting, it is an ideal choice for large venues such as highways and port terminals.

Core advantages
6063-T6 aviation aluminum alloy body
Special metal powder spraying process
Passed 4,000 hours of salt spray test
10-year anti-corrosion quality assurance

High-power energy system
24 high-efficiency monocrystalline silicon components (total 840W)
36V high-voltage system design
25.6V/104Ah dual battery configuration
72 hours of ultra-long battery life

Professional-grade lighting performance
120W ultra-high brightness LED module
21,600 lumens of luminous flux output
-30℃~50℃ wide temperature working
98% humidity environment, stable operation

Enquiry
Specifications
Total Height 10000MM
POLE
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ152-230MM (Top-Bottom)
Wall Thickness 4.8MM
Warranty 10 Years
LED LIGHT
Luminaire Power 120w
Efficacy 180LM/W
Lumen Output 21600LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50,000Hrs
Light Distribution T2,T3,T4,T5
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 24 Modules
Type Monocrystalline silicon
Power 36V,35Wx24
Efficiency >22%
Dimensions 336×6056MM
Warranty 10 Years
BATTERY
Type LiFePO4
Capacity 25.6V,52Ah*2PCS
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 3 Cloudy Days (Average 12Hrs Per Day)
