HVAR Cost-effective Aluminum Solar Light Pole Supplier

HVAR Cost-effective Aluminum Solar Light Pole
  • HVAR Cost-effective Aluminum Solar Light Pole
  • HVAR Cost-effective Aluminum Solar Light Pole

HVAR Cost-effective Aluminum Solar Light Pole

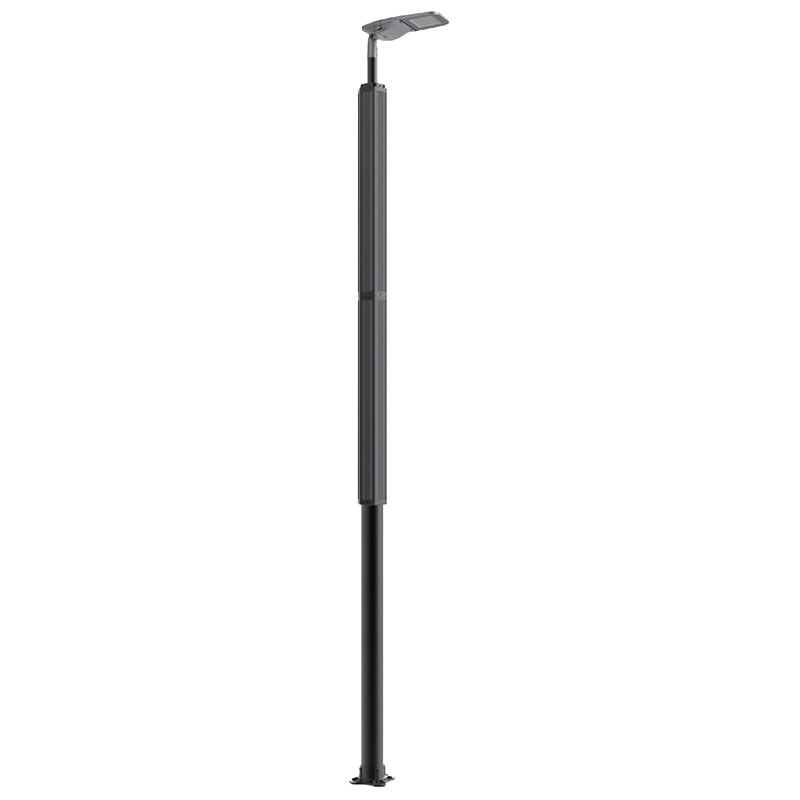

The Cost-effective Aluminum HVAR Solar Pole made of military-grade 6063-T6 aluminum alloy provides two height options of 5000/6000mm, equipped with 12 high-efficiency monocrystalline silicon components (total power 264W) and a 12.8V/30Ah lithium iron phosphate energy storage system, equipped with 40W ultra-high brightness LED lighting units, providing economical and efficient lighting solutions for municipal engineering and commercial projects.

Core configuration
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Surface treatment: military-grade metal powder spraying
Diameter: φ165mm (optimal cost-effective size)
Wall thickness: 3.5mm reinforced structure
Warranty: 10 years

2. High-efficiency lighting system
Power: 40W (ultra-high efficiency)
Light efficiency: 180 lumens/W (industry leading)
Brightness: 7200 lumens (equivalent to 450W traditional lamps)
Chip: Lumileds 3030 (cost-effective)
Color temperature: 3000K/4000K/5000K three-speed adjustable
Light distribution: T2-T5 multi-mode light distribution
Operating temperature: -30℃~50℃

3. Economical power generation system
Number of components: 12 pieces
Type: high-efficiency monocrystalline silicon
Total power: 264W (12×22W)
Efficiency: >22%
Size: 228×3018mm
Daily power generation: ≥1584Wh
Warranty: 10 years

Enquiry
Prev: ARGOS Flexible HJT Innovative Solar Light Pole Next: COMANO Innovative Flexible HJT Solar Light Pole
Specifications
Total Height 5000/6000MM
POLE
Pole Material Aluminum6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ165MM
Wall Thickness 3.5MM
Warranty 10Years
LED LIGHT
Luminaire Power 40W
Efficacy 180LM/W
Lumen Output 7200LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50.000Hrs
Light Distribution T2,T3, T4. T5
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 12 Modules
Type Monocrystallinesilicon
Power 18V,22Wx12
Efficiency >22%
Dimensions 228x3018MM
Warranty 10 Years
BATTERY
Type LiFePO4
Capacity 12.8V,30Ah*1/2PCS
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 3 Cloudy Days (Average 12Hrs Per Day)
