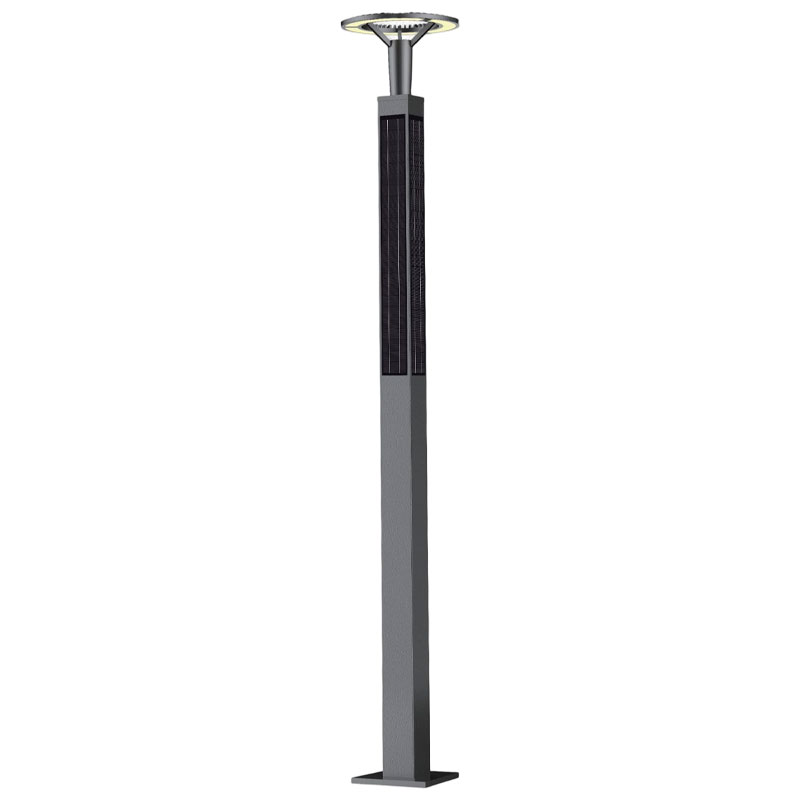

ANHOLT Coated Aluminum Solar Light Pole

ANHOLT Coated Aluminum Solar Light Pole

The Coated Aluminum ANHOLT Solar Pole made of 6063-T6 aluminum alloy has a total height of 4000mm, integrates 4 172×172mm high-efficiency monocrystalline silicon modules and a 12.8V/30Ah lithium iron phosphate energy storage system, and is equipped with a 20W high-brightness LED lighting unit to provide a reliable and efficient lighting solution for modern outdoor spaces.

Technical specifications
1. Main structure
Material: 6063-T6 aviation aluminum alloy
Surface treatment: military-grade metal powder spraying
Cross-section size: 172×172mm square
Wall thickness: 3mm reinforced design
Wind resistance: Class 12 (60m/s)

2. Lighting system
Rated power: 20W
Light efficiency index: 180 lumens/W
Luminous flux: 3600 lumens
Light source chip: Lumileds 3030
Color temperature options: 3000K/4000K/5000K
Protection standard: IP65

3. Power generation system
Number of components: 4 groups
Technology type: monocrystalline silicon
System power: 140W (4×35W)
Conversion efficiency: >22%
Component size: 172×172×1465mm
Warranty service: 10 years

Enquiry
Specifications
Total Height 4000MM
POLE
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter 172x172MM
Wall Thickness 3 MM
Warranty 10Years
LED LIGHT
Luminaire Power 20w
Efficacy 180LM/W
Lumen Output 3600LM
LED Chips Lumileds 3030
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50,000Hrs
Light Distribution 120°
Operating Temperature -30~50C
Warranty 5 Years
SOLAR MODULE
Module Qty 4 Modules
Type Monocrystalline silicon
Power 18V,35Wx4
Efficiency >22%
Dimensions 172x172x1465MM
Warranty 10 Years
BATTERY
Type LiFePO4
Capacity 12.8V,30Ah
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 3 Cloudy Days (Average 12Hrs Per Day)
