NILE Double Arm Aluminum Conical Roadway Light Pole Supplier

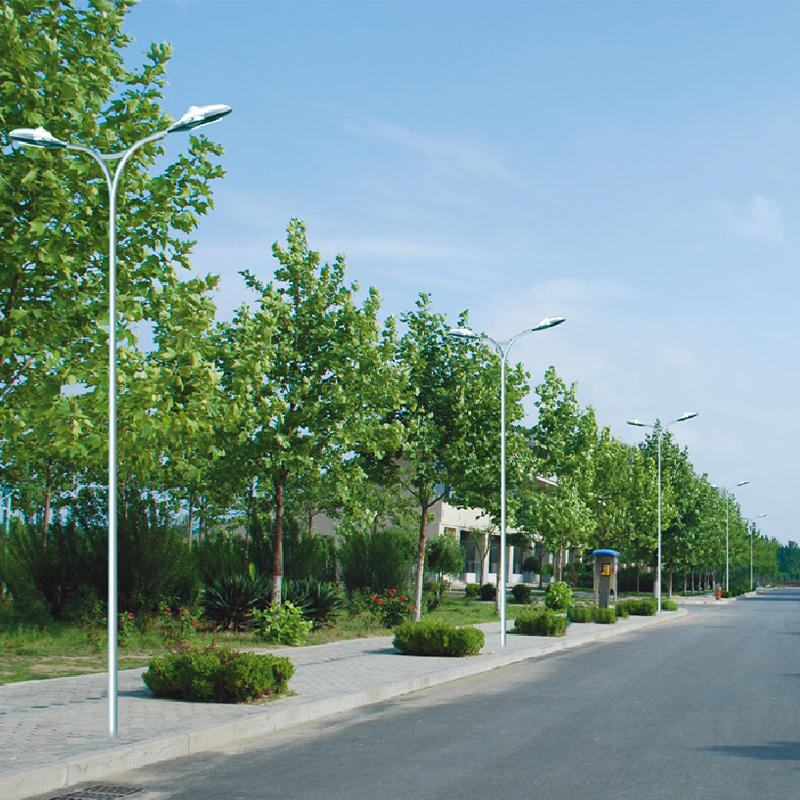

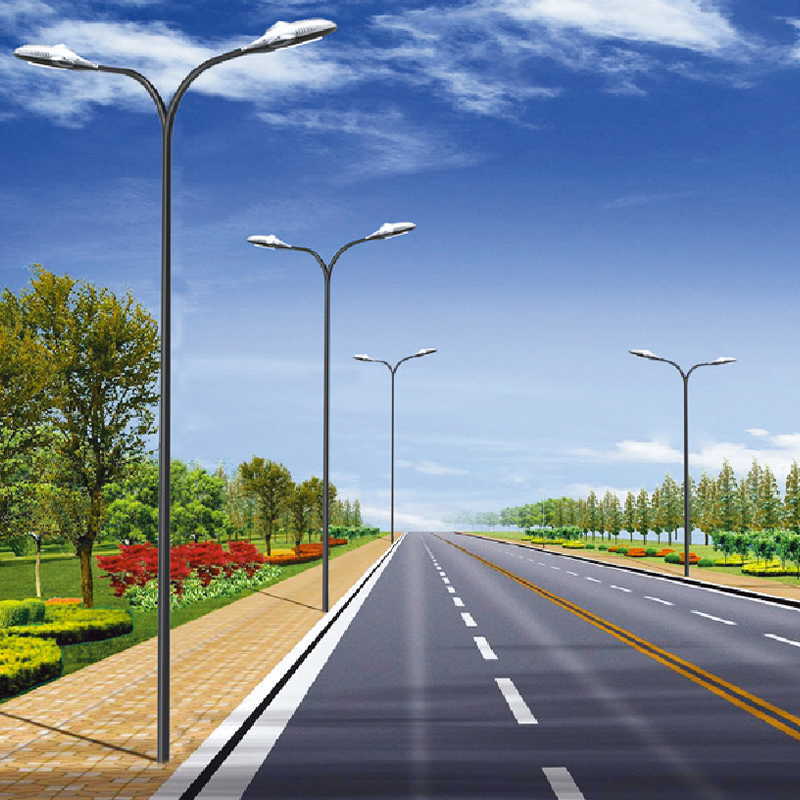

NILE Double Arm Aluminum Conical Roadway Light Pole
  • NILE Double Arm Aluminum Conical Roadway Light Pole
  • NILE Double Arm Aluminum Conical Roadway Light Pole

NILE Double Arm Aluminum Conical Roadway Light Pole

Bottom Diameter: φ152-178mm
Materials: Aluminum 6063-T6
Wall Thickness: 3.2-4.0mm
Surface Finish: Satin Brushed, Anodizing, Powder Coating

Enquiry
Prev: BERMUDA Conical Aluminum Roadway Light Pole Next: SAHARA Aluminum Conical Outdoor Street Roadway Light Pole

Flange Mount

Item No.
Height (m) Bottom Dia (mm) Top Dia (mm) Door Dimension (mm) Door Position (mm) Flange Dimension (mm) Bolt Circle (mm) Bolt Size
RHP15289A-60-BS-FG 6 152 89 100x400 500 320x320 250 4xM20
RHP16595A-70-BS-FG 7 165 95 100x400 500 320x320 250 4xM20
RHP16595A-80-BS-FG 8 165 95 100x400 500 400x400 300 4xM24
RHP178114A-90-BS-FG 9 178 114 100x400 500 400x400 300 4xM24
RHP178114A-100-BS-FG 10 178 114 100x400 500 400x400 300 4xM24
