CAPE Outdoor Aluminum Roadway Light Pole Supplier

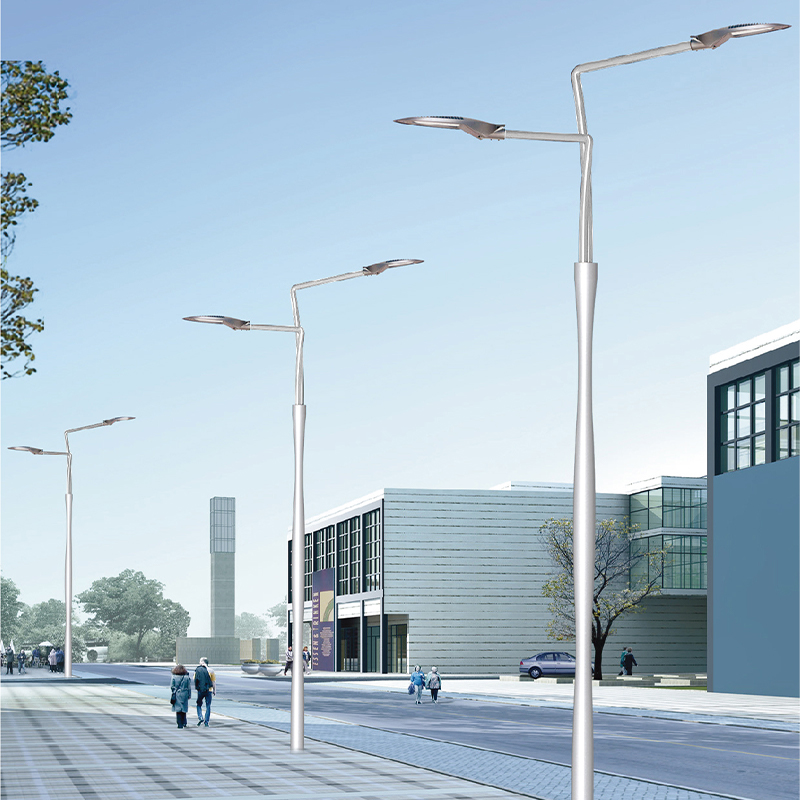

CAPE Outdoor Aluminum Roadway Light Pole
  • CAPE Outdoor Aluminum Roadway Light Pole

CAPE Outdoor Aluminum Roadway Light Pole

Bottom Diameter: φ152-203mm
Materials: Aluminum 6063-T6
Wall Thickness: 3.2-4.0mm
Surface Finish: Satin Brushed, Anodizing, Powder Coating

Enquiry
Prev: LEO Aluminum Curved Roadway Light Pole with 2 Arm Next: BERMUDA Conical Aluminum Roadway Light Pole

Flange Mount

Item No.
Height (m) Bottom Dia (mm) Top Dia (mm) Door Dimension (mm) Door Position (mm) Flange Dimension (mm) Bolt Circle (mm) Bolt Size
RDP15289A-60-BS-FG 6 152 89 100x400 500 320x320 250 4xM20
RDP16595A-70-BS-FG 7 165 95 100x400 500 320x320 250 4xM20
RDP16595A-90-BS-FG 9 165 95 100x400 500 400x400 300 4xM24
RDP178114A-100-BS-FG 10 178 114 100x400 500 400x400 300 4xM24
RDP203140A-120-BS-FG 12 203 140 100x400 500 400x400 300 4xM24
