ISNY Aluminum Metal powder spraying Solar Light Pole Supplier

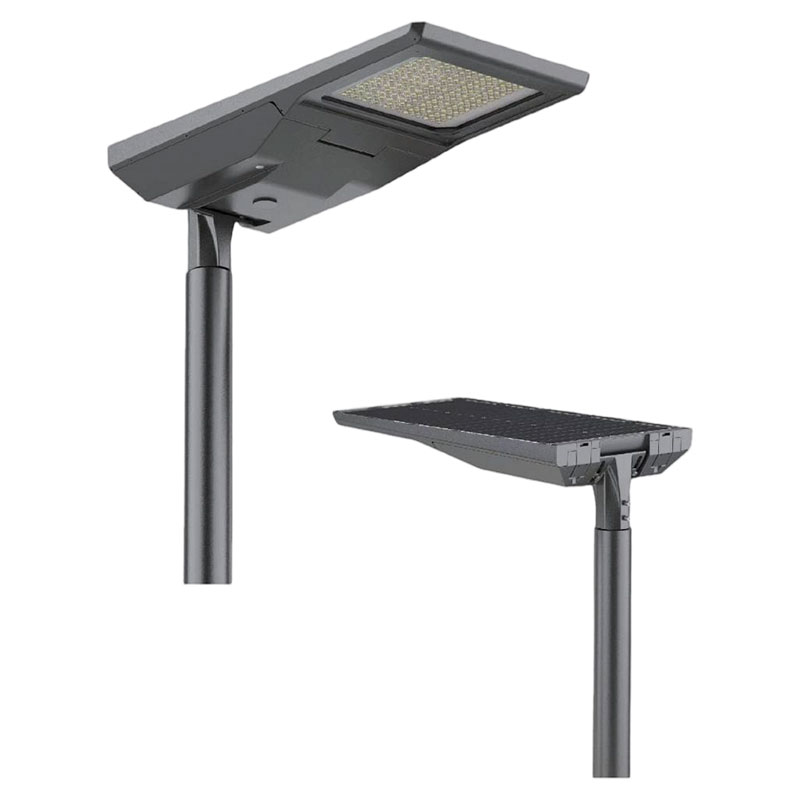

ISNY Aluminum Metal powder spraying Solar Light Pole
  • ISNY Aluminum Metal powder spraying Solar Light Pole
  • ISNY Aluminum Metal powder spraying Solar Light Pole

ISNY Aluminum Metal powder spraying Solar Light Pole

The Aluminum Metal powder-spraying ISNY Solar Pole is made of 6063-T6 aluminum alloy, providing three height options of 4500/5000/6000mm, equipped with 950×450mm large-size monocrystalline silicon components and a 12.8V/36Ah lithium iron phosphate energy storage system, equipped with 45W ultra-high performance LED lighting units, to create professional outdoor lighting solutions.

Core configuration
1. Light pole system
Material: 6063-T6 aviation-grade aluminum alloy
Surface treatment: military-grade metal powder spraying
Diameter: φ76-140mm tapered gradient design
Wall thickness: 3.2mm high-strength structure
Wind resistance level: 12 (60m/s)

2. LED lighting system
Power: 45W (ultra-high brightness)
Light efficiency: 190 lumens/W (industry leading)
Brightness: 8550 lumens (equivalent to 500W traditional lamps)
Chip: Lumileds 5050
Color temperature: 3000K/4000K/5000K three-speed adjustable
Lifespan: 50,000 hours (about 13.7 years)
Light distribution: T2-T5 multi-mode light distribution
Working temperature: -30℃~50℃

3. Product advantages
Super strong lighting: 8550 lumens ultra-high brightness, covering an area of 120㎡
Efficient power generation: 85W high-power components, daily power generation 510Wh
Intelligent control: supports multi-mode light distribution adjustment
Energy saving and environmental protection: save about 1500 degrees of electricity per year and reduce carbon emissions by 1200kg

Enquiry
Prev: IONA Eco-friendly Aluminum Solar Light Pole Next: LIENZ Coated Flexible HJT Solar Light Pole
Specifications
Total Height 4500/5000/6000MM
POLE
Pole Material Aluminum 6063-T6
Surface Treatment Metal powder spraying
Pole Diameter φ76-140MM(Top-Bottom)
Wall Thickness 3.2MM
Warranty 10 Years
LED LIGHT
Luminaire Power 45W
Efficacy 190LM/W
Lumen Output 8550LM
LED Chips Lumileds 5050
Colour Temperature 3000K/4000K/5000K
Ingress Protection Rate IP65
LED Lifespan 50,000Hrs
Light Distribution T2,T3,T4,T5
Operating Temperature -30~50C
Warranty 5Years
SOLAR MODULE
Module Qty 1 Module
Type Monocrystalline silicon
Power 18V,85W
Efficiency >22%
Dimensions 950 x450MM
Warranty 10 Years
BATTERY
Type LiFePO4
Capacity 12.8V,36Ah
Cycle Life 2000 Times
Charging Time Continuous 2 Sunny Days (Average 6Hrs Per Day)
Discharging Time Continuous 2 Cloudy Days (Average 12Hrs Per Day)
